Detail:

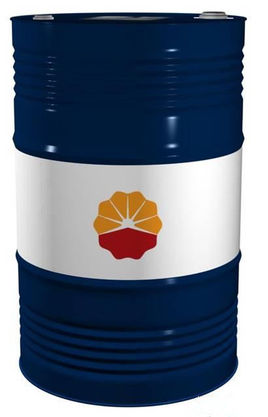

Kunlun KG-PS Synthetic Heavy Loading Gear Oil for factory
Model No.: 150 220 320
Products Standard: Q/SY RH2282-2013
Meeting Standards: AIST 224,DIN51517(Flender)
Application:
1.Being applied on shock loading gear system, and heavy loading industrial gear systems that regularly bearing -20-120℃, also occasionally bearing 130℃.
2.It will help to extend the lifetime when been used on normal loading gear system.
Data Sheet
| ITEMS |
KG-PS 150 |
KG-PS 220 |
KG-PS 320 |
Test Method |
Kinematic Viscosity at 40ºC,
mm²/s |
158.3 |
203.6 |
328.3 |
GB/T 265 |
| Viscosity index |
121 |
123 |
119 |
GB/T 1995 |
| Pour Point, ℃ |
-36 |
-30 |
-30 |
GB/T 3535 |
| 24h Liquid phase rust test, |
|
|
|
GB/T 11143 |
| By artificial seawater |
None |
None |
None |
| By distilled water |
None |
None |
None |
| Foam stability, mL/mL |
|
|
|
|
| 24ºC |
0/0 |
5/0 |
0/0 |
GB/T 12579 |
| 93ºC |
10/0 |
10/0 |
10/0 |
| then 24ºC |
0/0 |
5/0 |
0/0 |
| Emulsibility(40-37-3),min |
11 |
13 |
15 |
GB/T 7305 |
Grade of Copper Corrsion
(100ºC,3h) |
1b |
1b |
1b |
GB/T 5096 |
| Timken Testing(OK load), N |
267 |
267 |
267 |
GB/T 11144 |
| FZG gear test. Grade |
>12 |
>12 |
>12 |
SH/T 0306 |
|
|
|
