Detail:

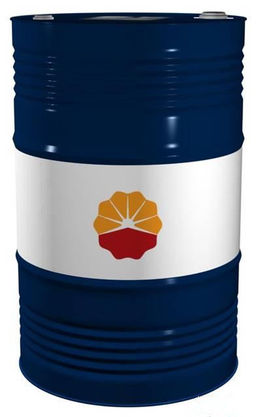

Kunlun KTG Heavy loading Combined Cycle Lubricate oil for Turbine
Model No.: KTG32 KTG46
Products Standard: Q/SY RH 2236-2012
Meeting Standards: GB 11120,TSA(Grade B),TSA(Grade A),TGA,TGSB DIN51515-1,DIN51515-2, Simens TLV9013 04,TLV 9013 05,Alston HTGD 90 117 V0001X,General Electric GEK 46506D, GEK32568F,GEK 107395A
Application:
Being applied on steam turbine with speed-variable gears,bearing temperature 70-125℃
Usually be used on heavy loading gas turbine, gas-steam combined cycle turbine.
Data Sheet:
| ITEMS |
KTG32 |
KTG46 |
Test Method |
| Kinematic Viscosity at 40ºC,mm²/s |
31.21 |
44.56 |
GB/T 265 |
| Viscosity index |
121 |
123 |
GB/T 1995 |
| Acid Value,mgKOH/g |
0.1 |
0.1 |
GB/T 4945 |
| Demulsibility(at 54℃)≥ |
10 |
10 |
GB/T 7305 |
| Foam stability, mL/mL |
|
|
GB/T 12579 |
| 24ºC |
20/0 |
20/0 |
| 93.5ºC |
20/0 |
20/0 |
| then 24ºC |
20/0 |
20/0 |
| Grade of Copper Corrsion(100ºC,3h) |
1b |
1b |
GB/T 5096 |
| Liquid Rust |
None |
None |
GB/T 11143 B |
| Air release value at 50℃≥ |
2 |
3 |
SH/T 0308 |
| Rotary bomb oxygen test≥ |
1580 |
1560 |
SH/T 0193 |
Hours of oxidation stability
(Acid vlaue at 2.0mgKOH/g) |
>10000 |
>10000 |
GB/T 12581 |
| Oxidized Resistant Corrosion at High Temperature(175℃,72h), Viscosity variation,% |
6.02 |
5.89 |
ASTM D4636 |
| Acid variation, mgKOH/g |
0.42 |
0.61 |
| Weight change of Sheet metal,mg/cm² |
|
|
| Steel |
0.03 |
0.001 |
| Aluminum |
0.076 |
-0.015 |
| Cadmium |
0.026 |
0.033 |
| Copper |
0.03 |
0.071 |
| Magnesium |
0.043 |
0.025 |
| Filterability,% |
|
|
SH/T 0805 |
| Dry method |
90 |
90 |
| Wet method |
Pass |
Pass |
|
|
|
